Stainless Steel Worktop Thickness: How to Compare Quotes
The short answer
Compare three separate dimensions: the thickness of the stainless metal, the visible edge depth and the total worktop build-up. A deep edge does not prove there is solid steel through that depth. Request a section drawing and compare the backing, supports and openings before choosing between quotations.

What does each thickness actually measure?

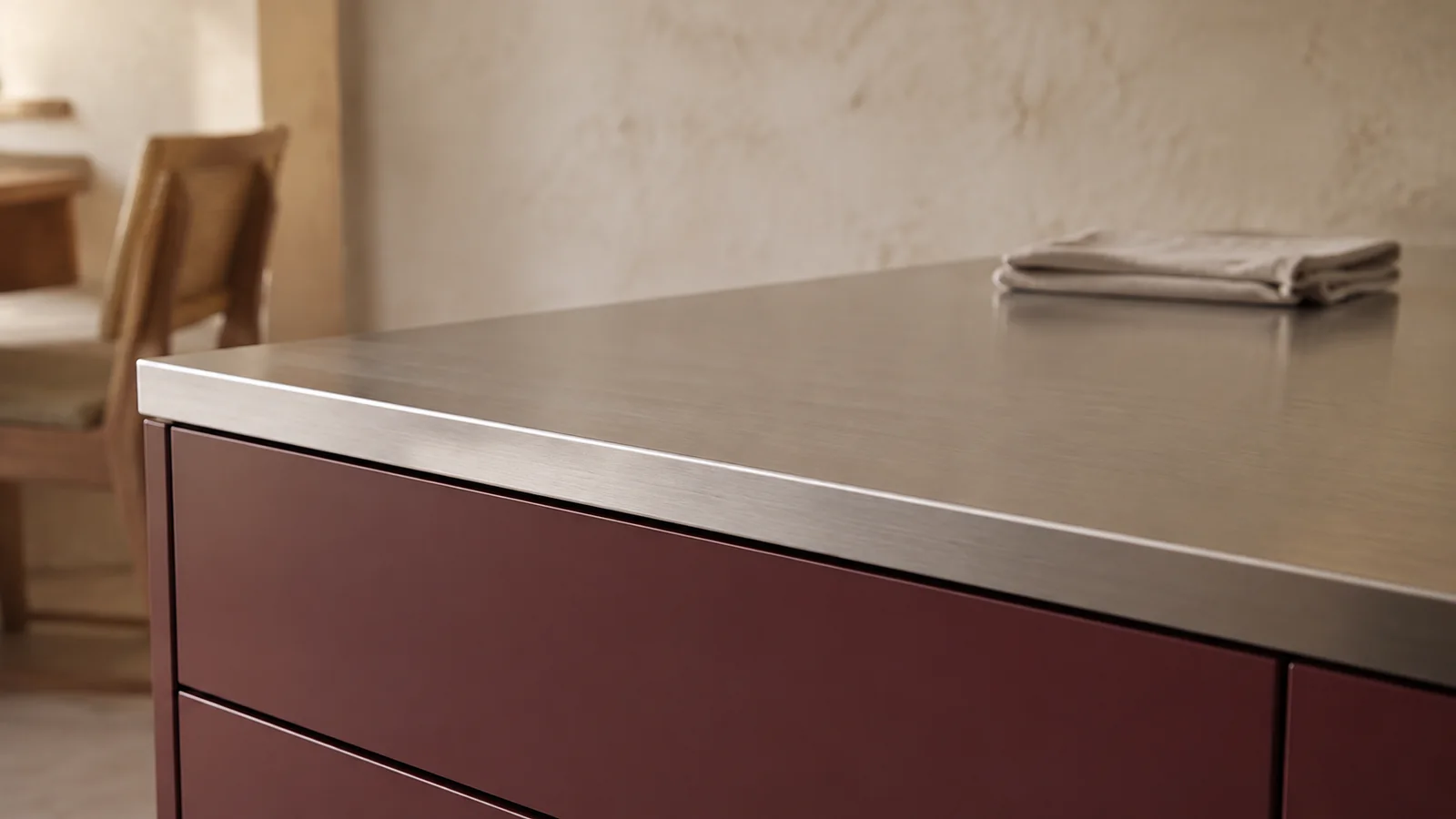

A quotation that says “20 mm stainless worktop” leaves an important question unanswered: where was that dimension taken? The front profile, the metal itself and the complete assembly can have different measurements.
| Dimension | What it describes | Where to show it |
|---|---|---|
| Metal thickness | The thickness of a named stainless sheet or plate component. | A dimension across the metal in a section, with the component identified. |
| Visible edge depth | The depth of the profile seen from the front or side. | The finished elevation and edge section, including any return. |
| Total build-up | The worktop assembly from its upper face to the specified underside, including any backing or support within that dimension. | A complete section with its measurement limits clearly marked. |
There are different ways to build a steel worktop. Veos, for example, describes stainless sheet glued to a plywood core. This establishes the existence of that construction, not the construction of an Anray order or every worktop with a similar edge.
Use millimetres in the comparison. If a supplier quotes a gauge number, request the corresponding nominal metal thickness and its tolerance in millimetres. This avoids trying to resolve a quotation from an unlabelled gauge chart or a photograph.

A simple example of a misleading comparison
The following numbers are invented to explain the dimensions. They are not Anray specifications, available options or recommendations.
Suppose Quote A describes a 1.2 mm steel sheet with a 20 mm finished front profile. Quote B describes a 4 mm steel plate. Saying “A is 20 mm and B is 4 mm, so A contains thicker steel” compares the wrong fields. The metal dimensions in this example are 1.2 mm and 4 mm; the 20 mm value describes A’s visible edge.
Even after correcting that comparison, you have not established which complete worktop suits the kitchen. Quote A still needs its backing and support details. Quote B still needs its edge, support and attachment details. Both need the sink and appliance interfaces shown.
Request an enlarged section through an ordinary edge and any area where the construction changes. Those sections should identify the metal and the backing separately; the front elevation shows only the visible profile.
Use this worksheet before comparing the prices
Send the same kitchen drawing revision to both suppliers. Fill this worksheet with their written answers; keep an unanswered item marked “not supplied” rather than assuming both quotations include it.
| Field | Quote A | Quote B |
|---|---|---|
| Drawing number and revision | Enter reference | Enter reference |
| Metal component, grade, nominal thickness and tolerance | Enter each item separately | Enter each item separately |
| Visible front and end profile | Attach section reference | Attach section reference |
| Total build-up and any backing | Identify each layer or support | Identify each layer or support |
| Support across cabinets, openings and overhangs | Show locations and supplier scope | Show locations and supplier scope |
| Sink, upstand, cutouts and site joints | List included fabrication | List included fabrication |
| Finish and edge sample reference | Enter the approved sample ID | Enter the approved sample ID |
| Installation provisions and exclusions | Name who supplies and fits them | Name who supplies and fits them |
Use this purchasing worksheet to identify missing information. The supplier still needs to specify the assembly for the project; the worksheet does not prescribe its engineering design.
Check the places where the worktop stops being a simple rectangle
Start with the dishwasher opening. Show the worktop build-up above it and the space available for the specified appliance. A change to the underside can affect an interface even when the visible edge stays the same.

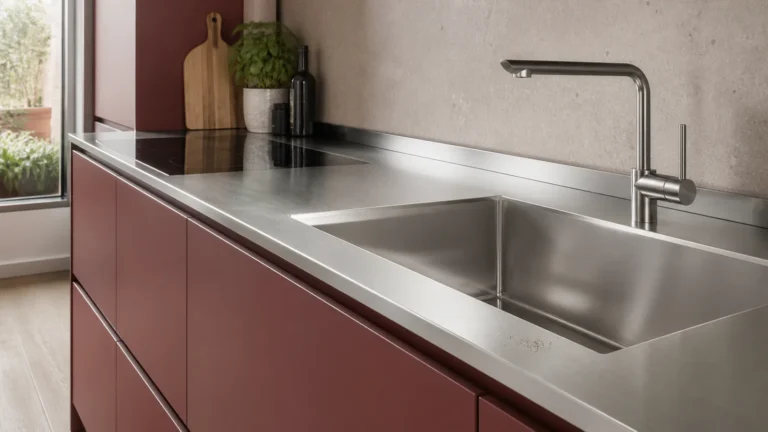

At the sink, include the bowl, tap fixing area and the space needed below for the selected fittings. Beside a hob, use the exact appliance’s installation information. At an island overhang, obtain the support detail for that layout; a metal thickness alone is not an unsupported-span or load rating.
If the quote includes several worktop sections, identify who joins them on site and how the meeting edges are finished. Read the existing worktop seam planning guide for that separate decision.
For a kitchen retaining its current cabinets, use the existing-cabinet worktop guide. A new surface specification does not establish that the old support arrangement is suitable.
What should an approval sample show?

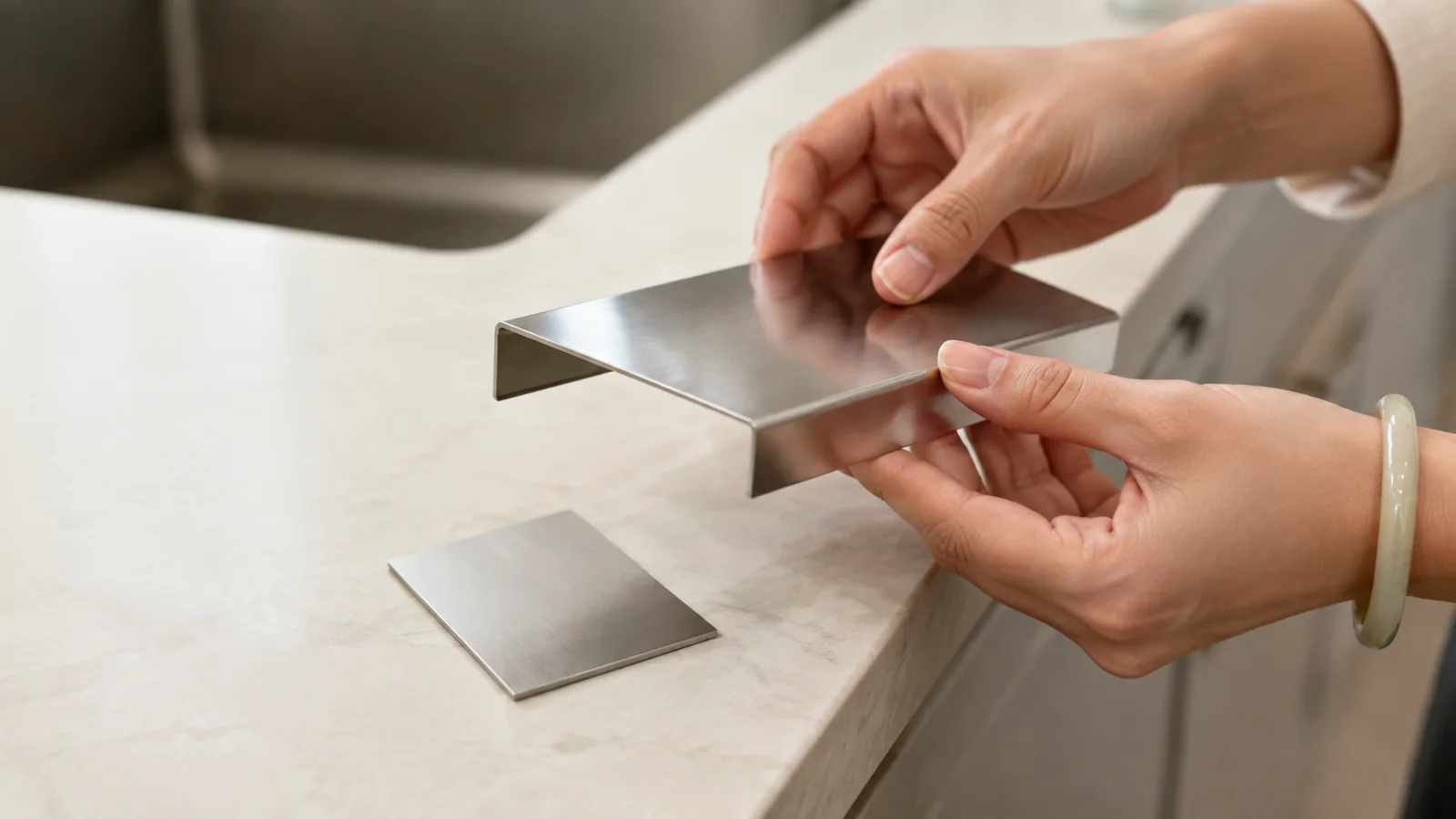

A flat finish swatch helps you choose appearance. An edge sample or cut section can show how the proposed profile is built. Request both views if the construction and appearance are still being agreed, and label them with the quotation revision they represent.
Keep the proposed residential door finish beside the steel sample: wood-look, white or coloured fronts can change how you judge the steel’s reflection in the room. Review it under the kind of light planned for the kitchen. That is an appearance review, not a structural or corrosion test.
For measurements, agree which component will be measured, where it can be accessed and how the result will be recorded. Measuring the outside of a folded edge will not establish the hidden sheet thickness. Do not bend, cut or dismantle the finished worktop to make an informal check.
A thickness number does not define care
The final order should include care instructions for the supplied assembly. Franke’s worktop manual, for example, gives different hot-pan guidance for FineSteel and PureSteel. Our hot-pan guide explains that distinction without applying either product’s instructions to other worktops.
Keep the quotation, section drawing and approved sample references together. If the construction changes during pricing, update those references before accepting the revised offer.
Compare the rest of the kitchen scope
For the rest of the kitchen order, use the whole-kitchen quotation comparison guide to check what each price includes.
